30864501

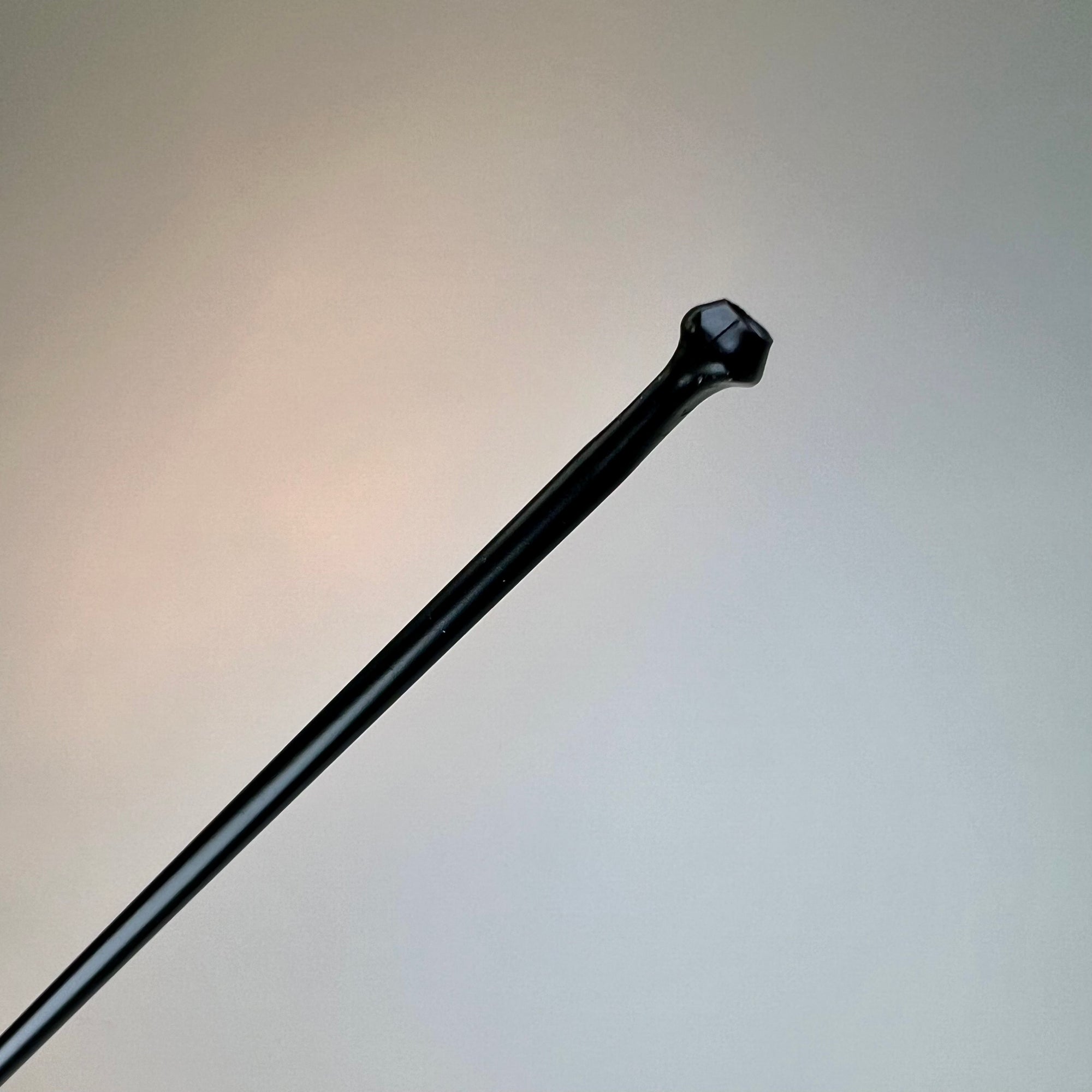

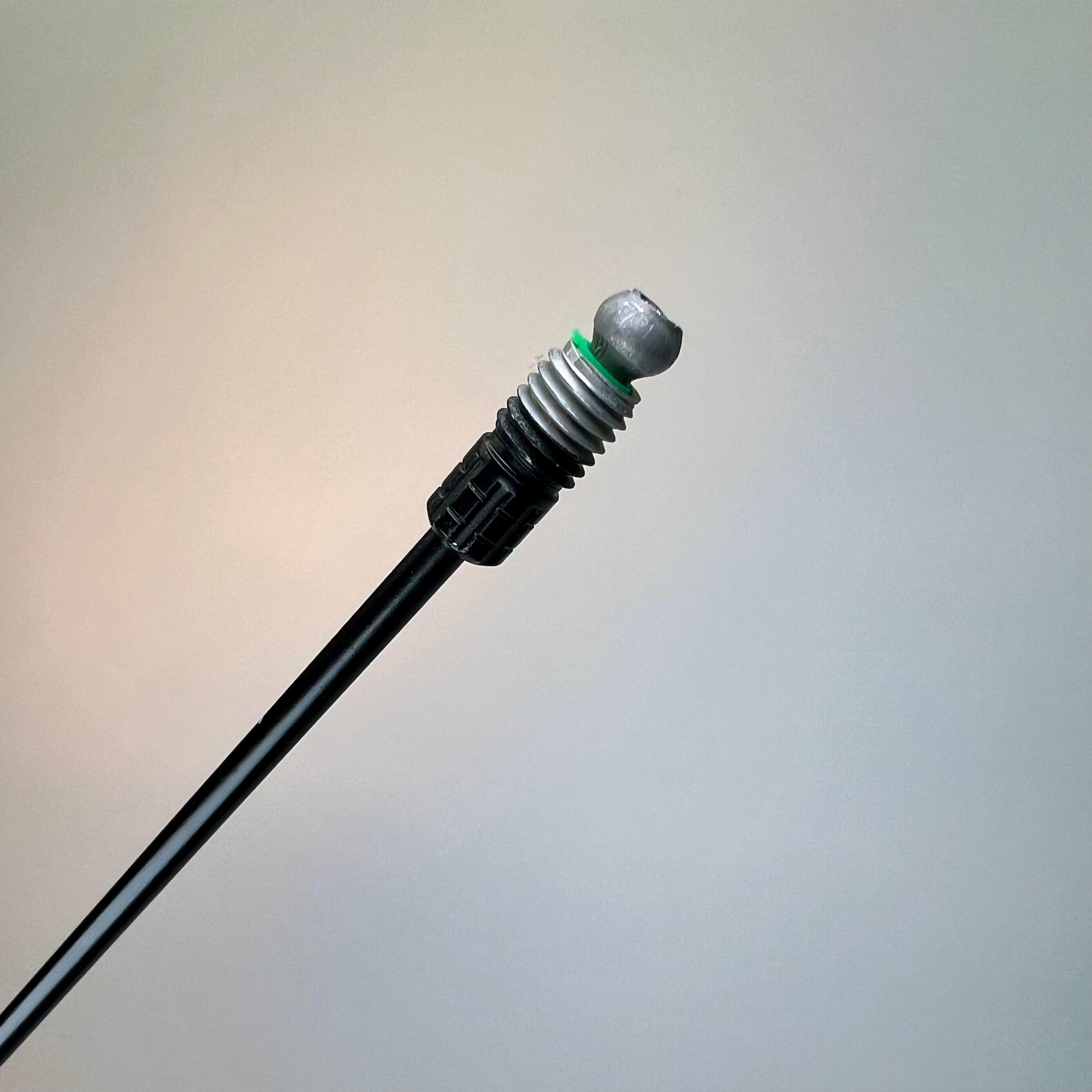

These are black, ROUND, straight pull Zicral spokes with integrated New M7 (6.4mm) nipples. They are used in the following 26" wheels:
2012 Crossmax ST (26")(IS)
2012 Crossmax ST (26")(CL)
2012 Crossmax ST (26") Lefty
2012 Crossmax SX (26")(Front)
Part Number | Position | Length | Color |
---|---|---|---|
30864501 | Front (ST/SX) | 261.5mm | Black |
30864301 | Drive side (ST) | 239mm | Black |
30864401 | Non-drive side (ST) | 269mm | Black |
30864601 | Drive side (SX) | 247mm | Black |
30864701 | Non-drive side (SX) | 266.5mm | Black |
If you are unsure which spokes you need to order or are unsure how to determine the model and/or year of your wheel, here's a short video about what I use to ID a Mavic wheel.
