Mavic

12029601

Mavic R-SYS, R-SYS SLR, Ksyrium SR Tracomp Spokes 2011-2016

Size

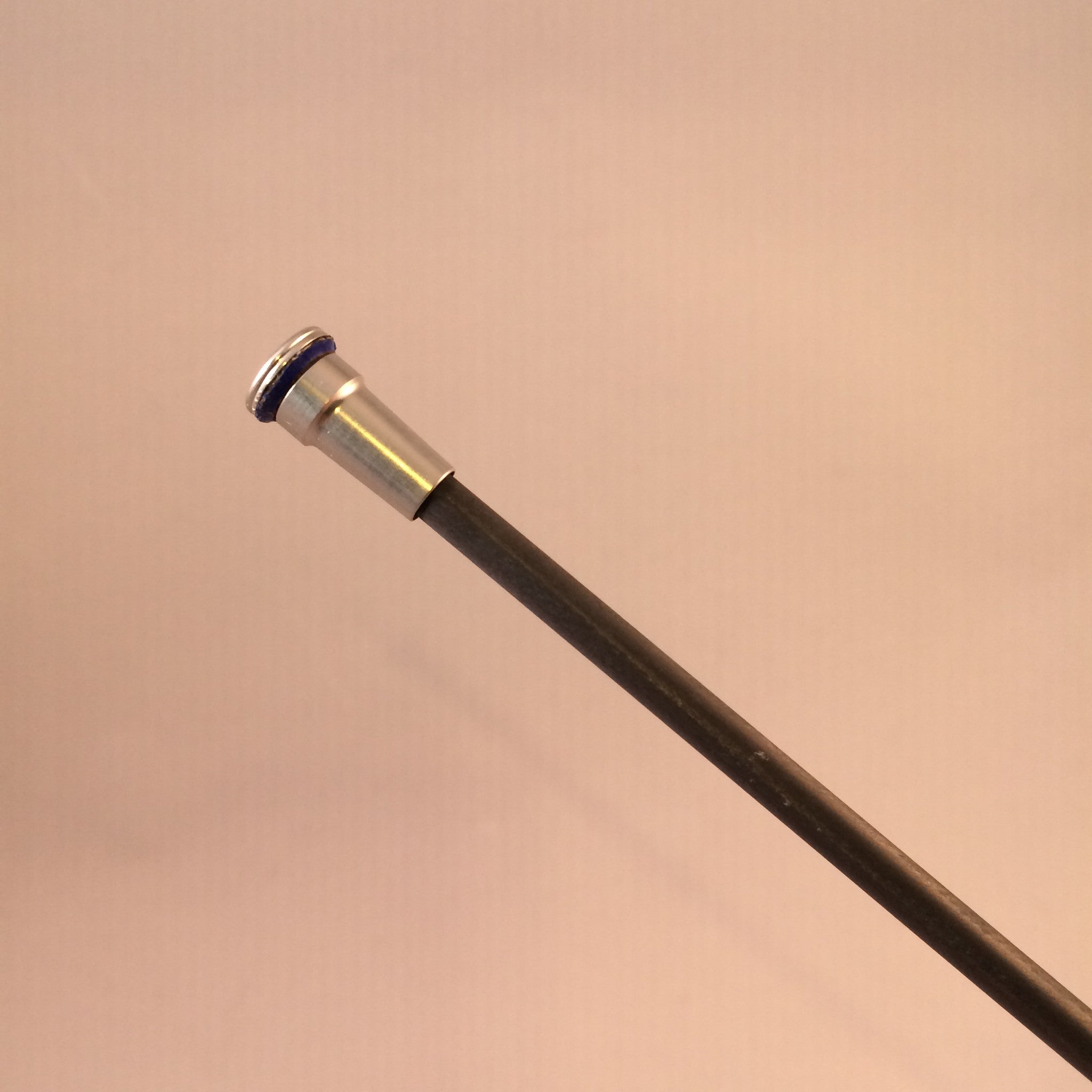

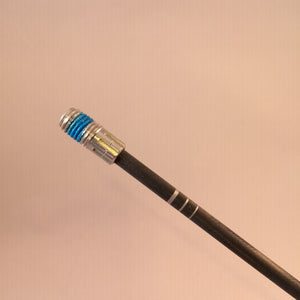

These wheels use Tracomp non-drive side and front spokes. The Mavic TraComp tubular carbon spoke was used in the 2008 and 2016 Mavic R-SYS wheels on the non-drive side of the rear wheel as well as the front wheel.  These spokes have the new N7 nipple (6.4mm) and thus require the new M7 truing tool.  These are far from traditional spokes are require a specific procedure to replace and to true a wheel.  Lack of following the instructions set forth by Mavic will likely result in damaging the spoke and having to buy another replacement... Consider yourself warned!  Since these spokes are susceptible to damage in shipping, I take special care packaging them for shipping.

R-SYS (2008)
107 995 01 - Front
107 996 01 - Non-drive Side

R-SYS Premium (2009)
107 958 01 - Front
107 959 01 - Non-drive Side

R-SYS (2010) RED
108 437 01 - Front
108 444 01 - Non-drive Side

R-SYS SL (2010)
107 958 01 - Front
107 959 01 - Non-drive Side

R-SYS SLR (Clincher) (2011+)
120 296 01 - Front
120 295 01 - Non-drive Side
108 446 01 - Drive side

Ksyrium SR (2011+)
120 295 01 - Non-drive Side

R-SYS (2012)
107 958 01 - Front (Silver ends)
107 959 01 - Non-drive Side (Silver ends)

Ksyrium SLR (2012)
120 295 01 - Non-drive Side

R-SYS SLR (Clincher) (2013+)
120 296 01 - Front
120 295 01 - Non-drive Side

R-SYS SLR (Tubular) (2013+)
120 296 01 - Front
108 447 01 - Drive side

Ksyrium SLR (2013+)
120 295 01 - Non-drive Side

R-SYS (2013)
107 958 01 - Front (Silver ends)
107 959 01 - Non-drive Side (Silver ends)
108 445 01 - Drive side

R-SYS SLR C (2013)
12029601 - Front (Black ends)
12029501 - Non-drive side (Black ends)

R-SYS SLR (2015)
V2270201/V4161301 - Front (Black ends)
V2270301/V4161301 - Non-drive side (Black ends)

R-SYS SLR (2016)
V2270201/V4161301 - Front (Black ends)
V2270301/V4161301 - Non-drive side (Black ends)

Part Number Position Length Color Nipple Color
10795501 Front 285mm Carbon Yellow
10795601 Non-drive side 284mm Carbon Yellow
10795801 Front 285mm Carbon Silver
10795901 Non-drive side 283.5mm Carbon Silver
10843701 Front 285mm Carbon Red
10844401 Non-drive side 284mm Carbon Red
12029601 Front 285mm Carbon Black
12029501 Non-drive side 284mm Carbon Black
V2270201/V4161301 Front 282.7mm Black Black
V2270301/V4161301 Non-drive side 282.7mm Black Black

If you are unsure which spokes you need to order or are unsure how to determine the model and/or year of your wheel, here's a short video about what I use to ID a Mavic wheel.
